External stages

A custom workflow stage normally runs beside Hub, consumes an internal WorkflowRun from its stage queue, and returns that message to the workflows engine. The workflow forwarder is the boundary for stages that run in a customer-managed environment instead. It keeps the internal queue and credentials inside Hub and sends the external service a smaller, versioned invocation over the customer’s own RabbitMQ broker or HTTPS endpoint.

Use the forwarder when the external worker:

• runs outside the Hub cluster;
• must not receive Hub storage credentials or internal routing state;
• should consume from a customer-managed queue or API;
• needs to return data that can route the remaining workflow stages.

End-to-end flow

In callback mode, the forwarder is an adapter between Hub’s internal run message and the external contract:

Hub workflows engine
        |
        | internal WorkflowRun
        v
Workflow forwarder
        |
        | safe WorkflowInvocation
        v
Customer RabbitMQ or HTTPS endpoint
        |
        | POST callback with customer's Hub token
        v
Hub API: /workflows/runs/{runId}
        |
        | trusted internal result
        v
Hub workflows engine -> downstream stages or completion

1. The workflows engine dispatches the forwarder stage.
2. The forwarder removes internal-only data and builds a uug.ai/workflow-invocation/v1 message.
3. The external worker consumes the invocation and performs its work.
4. The worker sends a uug.ai/workflow-result/v1 body to the callback URL from the invocation, using its own Hub access token.
5. Hub validates the token, tenant, run, and dispatched operation before publishing the result back to the workflows engine.
6. The engine records the first accepted result and either dispatches matching downstream stages or completes the run.

The external worker never connects to Hub’s internal workflow queue and never receives a Hub credential in the invocation.

Completion modes

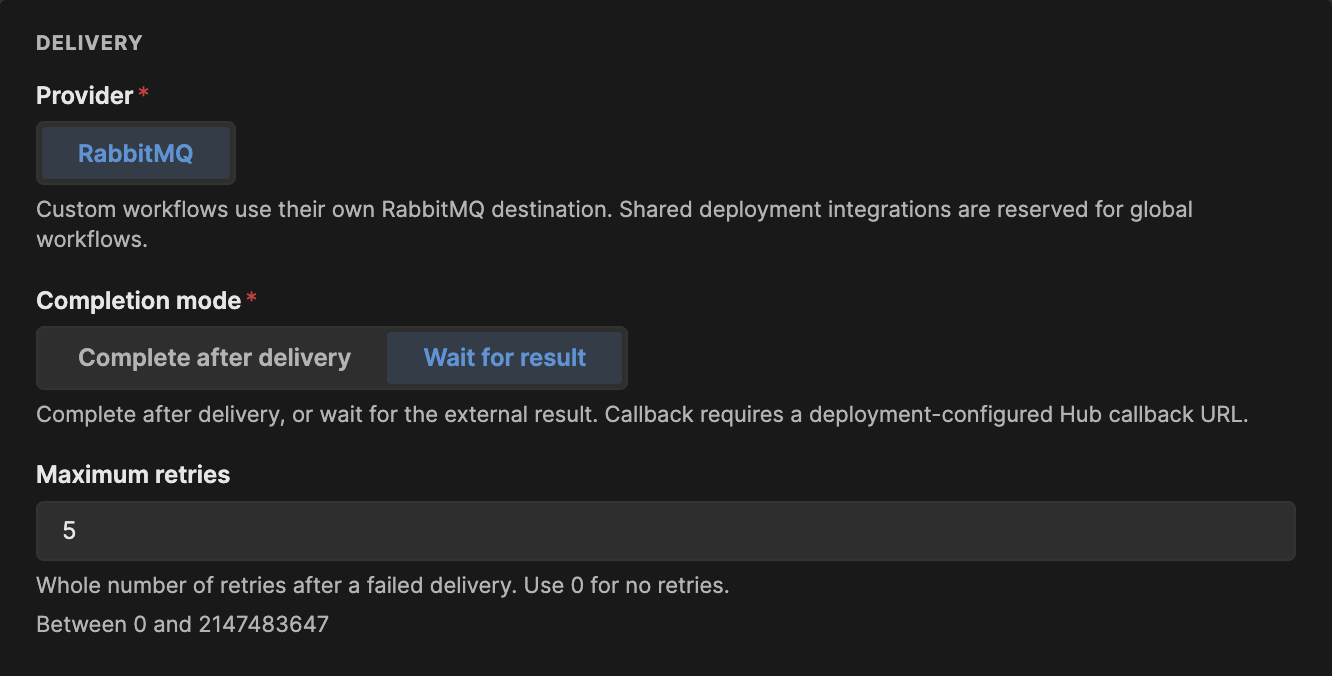

The binding’s completion mode decides when the forwarder stage resolves.

Use callback for an external processing stage. A successfully published invocation does not complete that stage.

Invocation contract

The external worker receives a WorkflowInvocation, not the internal WorkflowRun:

{
  "schema": "uug.ai/workflow-invocation/v1",
  "executionId": "wfx_8a5f...",
  "runId": "68d3fb899cad115513a781bd",
  "workflow": {
    "id": "customer-analysis",
    "name": "Customer analysis"
  },
  "stage": {
    "operation": "forwarder"
  },
  "tenant": {
    "organisationId": "6754047347321302010cafee",
    "projectId": "6754047347321302010cafee"
  },
  "media": {
    "key": "recordings/camera-1/example.mp4"
  },
  "device": {
    "key": "camera-1",
    "name": "Front entrance",
    "siteIds": ["site-1"]
  },
  "data": {
    "inputs": {},
    "results": {
      "classify": {
        "objects": ["person"]
      }
    }
  },
  "callback": {
    "url": "https://api.example.com/workflows/runs/68d3fb899cad115513a781bd",
    "method": "POST",
    "resultSchema": "uug.ai/workflow-result/v1"
  },
  "traceId": "4bf92f3577b34da6a3ce929d0e0e4736"
}

The exact data fields come from the forwarder binding. The environment-backed RabbitMQ binding exposes the run’s inputs and accumulated results. Advanced bindings can explicitly map a narrower set of tenant, device, media, input, or result fields.

The boundary intentionally excludes:

• storage credentials and account storage settings;
• the internal ingest payload;
• internal lifecycle, dispatch, and resolution state;
• Hub access tokens.

A short-lived signed media URL is included only when the binding explicitly opts in.

Invocation identities

The forwarder may redeliver an invocation after a timeout or connection failure. The external worker should therefore deduplicate work by executionId.

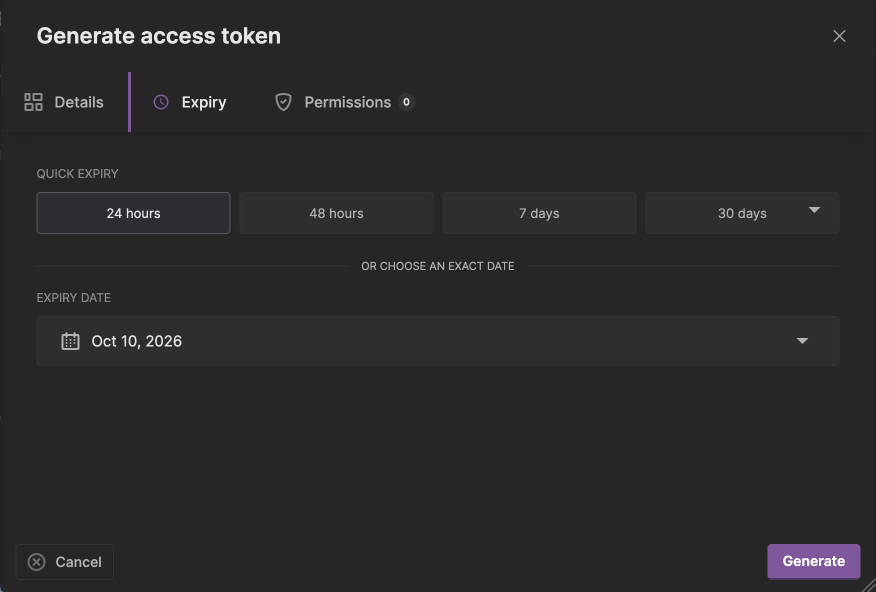

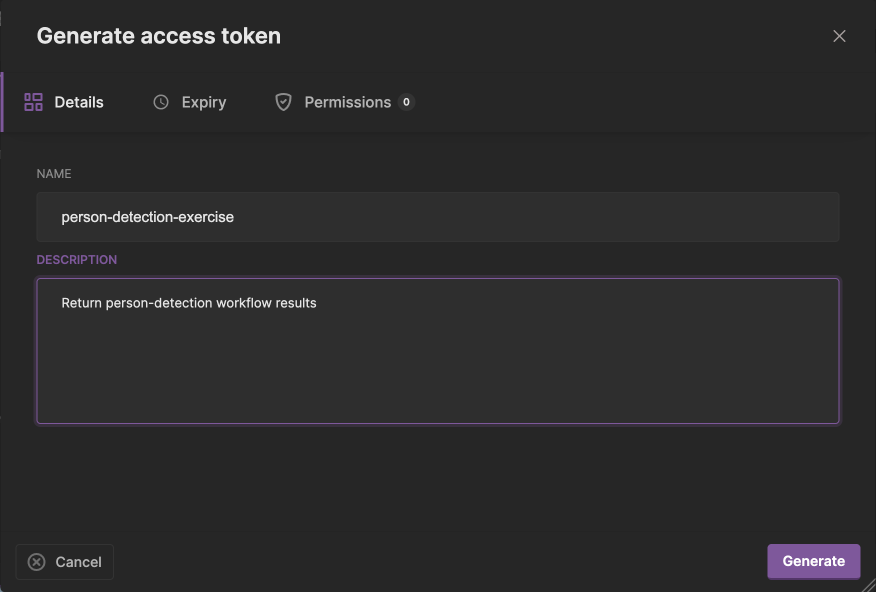

Create and provision the access token

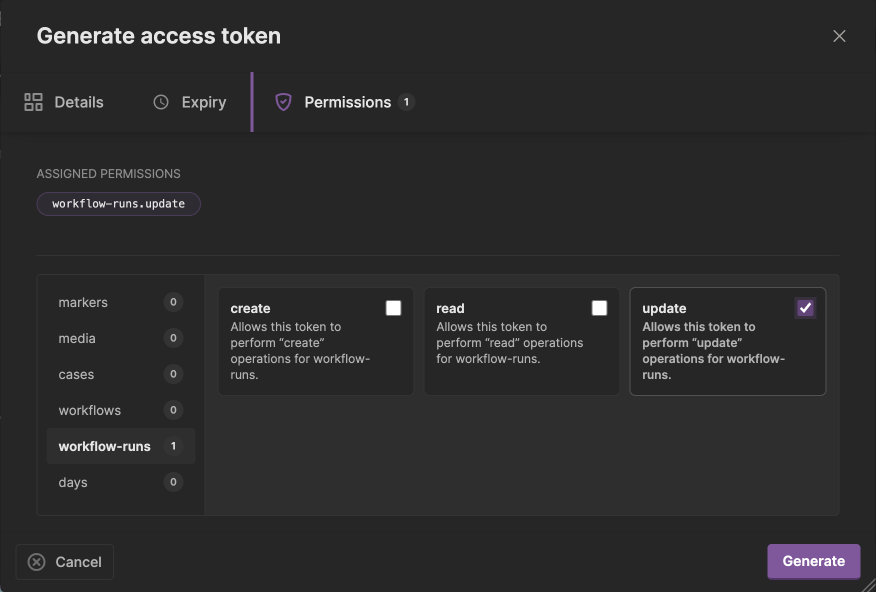

The external service authenticates the callback with an access token created by a user in Hub. In Hub, create the token in the organisation and project whose workflow runs it will update, and grant exactly:

workflow-runs.update

The spelling is exact and plural: workflow-runs.update.

Provision the token directly to the external service through its secret manager. Do not put it in:

• the workflow definition;
• the forwarder binding or destination;
• RabbitMQ message headers;
• the invocation body.

The Hub API verifies the token signature and its persisted access-token binding, pins the request to the token’s organisation and project, and then requires the workflow-runs.update scope. A valid token cannot update a run from another project, and the requested operation must already have been dispatched for that run.

Return the result

Read the callback URL, method, and result schema from each invocation rather than constructing the URL in the external worker:

POST /workflows/runs/68d3fb899cad115513a781bd HTTP/1.1
Host: api.example.com
Authorization: Bearer <hub-access-token>
Content-Type: application/json

{
  "schema": "uug.ai/workflow-result/v1",
  "stage": {
    "operation": "forwarder"
  },
  "result": {
    "decision": "allow",
    "confidence": 0.94
  }
}

stage.operation must match the invocation’s stage.operation. A callback must return exactly one output channel:

• result contains routing values from a stage that persists its own output. The object becomes that operation’s entry in the workflow run’s results and can be read by downstream conditions.
• payload contains a workflow block envelope for Hub to validate and persist.

For example, a stage can ask Hub to persist a marker:

{
  "schema": "uug.ai/workflow-result/v1",
  "stage": {
    "operation": "forwarder"
  },
  "payload": {
    "blocks": [
      {
        "type": "marker",
        "data": {
          "startTimestamp": 1790258400,
          "endTimestamp": 1790258430,
          "name": "custom integration",
          "description": "Created by the customer-managed stage"
        }
      }
    ]
  }
}

Do not place blocks under result.blocks. That is routing data and is not sent to the ingest pipeline. Hub derives the recording, organisation, project, and device context from the stored run rather than trusting those values in the callback. After successful ingestion, Hub mirrors the persisted blocks into the operation’s routing result, grouped by block type, for downstream conditions.

The callback request body is limited to 1 MiB. Store large artefacts in the customer system or an appropriate object store and return a reference and small routing values instead. Use payload only for supported ingest blocks that Hub should own.

Responses and retries

Callback processing is first result wins. Concurrent duplicate messages cannot overwrite the accepted result or dispatch downstream stages twice. Retried callbacks should send the same JSON output. A 202 confirms durable queue acceptance, not that an ingest block has already been persisted; block processing happens asynchronously in the workflow engine.

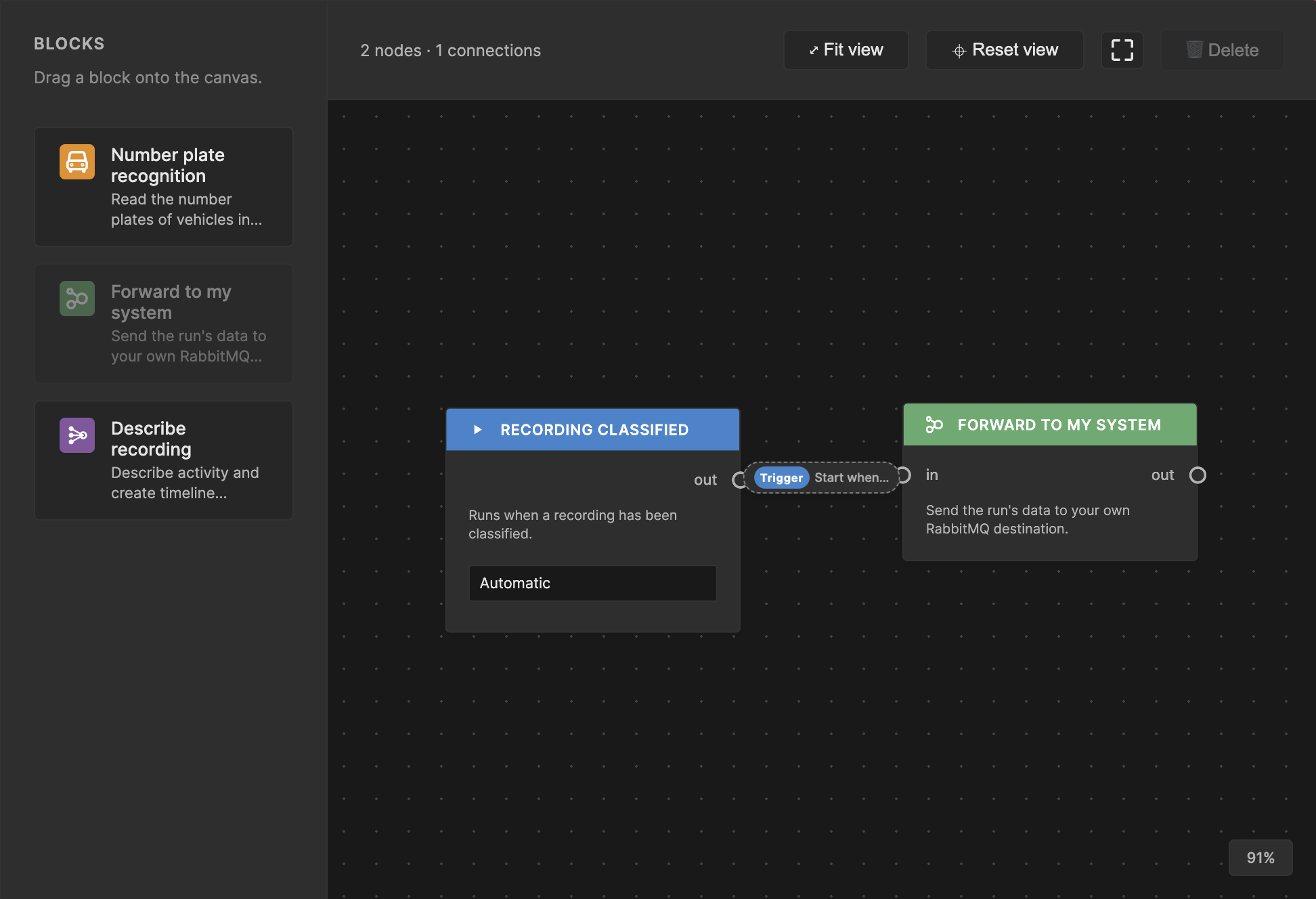

Configure the deployment

The Hub chart does not need provider-specific forwarder fields. Workflow services already accept arbitrary environment variables, volumes, and mounts. Register forwarder like any other stage, then pass its configuration through the existing env map:

kerberoshub:
  workflows:
    enabled: true
    definitions:
      customer-analysis:
        enabled: true

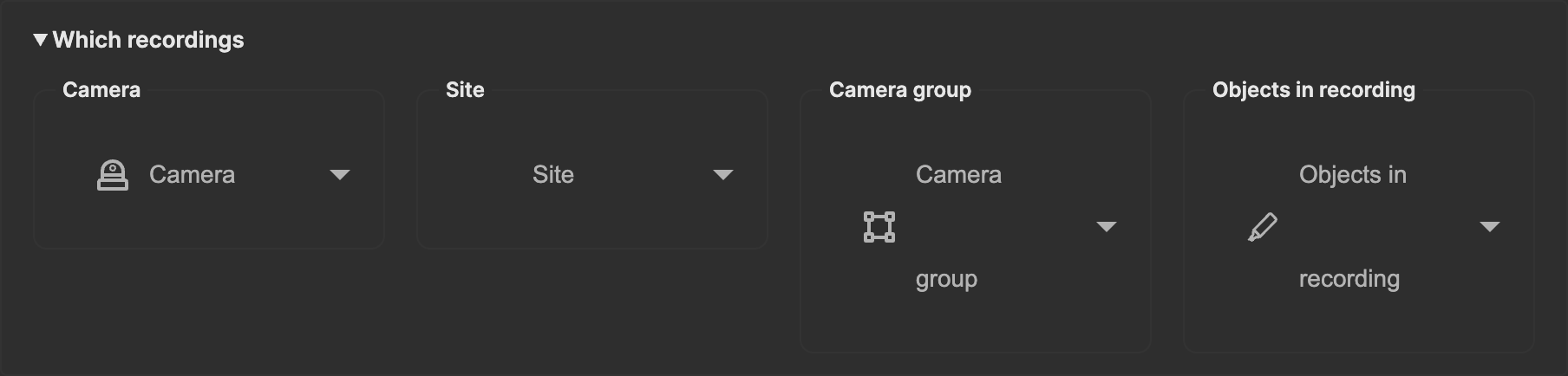

        triggers:
          - type: automatic
        stages:
          - operation: forwarder
            dispatch: always

  services:
    forwarder:
      enabled: true
      repository: ghcr.io/uug-ai/hub-workflows-forwarder
      pullPolicy: IfNotPresent
      tag: "v1.0.1"
      replicas: 1
      logLevel: "info"
      queue: "kcloud-forwarder-queue.fifo"
      env:
        FORWARDER_CONFIG_FILE: "/etc/hub-workflows-forwarder/config.json"
      volumeMounts:
        - name: forwarder-config
          mountPath: /etc/hub-workflows-forwarder
          readOnly: true
      volumes:
        - name: forwarder-config
          configMap:
            name: hub-workflows-forwarder

Create the referenced ConfigMap through the deployment’s normal configuration management. The mounted JSON selects the provider, destinations, field mappings, and completion mode. For example, an HTTPS integration can use:

{
  "callback": {
    "baseUrl": "https://api.example.com"
  },
  "integrations": {
    "customer-system": {
      "provider": "webhook",
      "destinations": {
        "analyse": {
          "url": "https://customer.example.net/workflows/analyse",
          "headersFromEnv": {
            "Authorization": "CUSTOMER_API_AUTHORIZATION"
          }
        }
      }
    }
  },
  "bindings": [
    {
      "operation": "forwarder",
      "integration": "customer-system",
      "destination": "analyse",
      "completionMode": "callback",
      "fields": {
        "inputs": {
          "path": "inputs"
        },
        "results": {
          "path": "results"
        }
      }
    }
  ]
}

The ConfigMap contains routing configuration, not secrets. CUSTOMER_API_AUTHORIZATION is the name of an environment variable provisioned to the forwarder through the deployment’s secret management. It authenticates delivery to the customer endpoint and is unrelated to the Hub token the customer worker uses for the callback.

RabbitMQ convenience configuration

A deployment with one RabbitMQ destination can skip the JSON file and set the forwarder’s supported environment variables in the same open env map:

kerberoshub:
  services:
    forwarder:
      env:
        FORWARDER_OPERATION: "forwarder"
        FORWARDER_COMPLETION_MODE: "callback"
        FORWARDER_CALLBACK_BASE_URL: "https://api.example.com"
        FORWARDER_MAX_RETRIES: "5"
        FORWARDER_RABBITMQ_HOST: "customer-rabbitmq.example.com:5671"
        FORWARDER_RABBITMQ_USERNAME: "workflow-publisher"
        FORWARDER_RABBITMQ_PASSWORD: "<from-your-secret-management-overlay>"
        FORWARDER_RABBITMQ_QUEUE: "customer-workflow-invocations"
        FORWARDER_RABBITMQ_VHOST: "/"
        FORWARDER_RABBITMQ_TLS: "true"
        FORWARDER_RABBITMQ_DECLARE_QUEUE: "false"

This destination connection is separate from Hub’s internal RABBITMQ_* connection. Use TLS and a customer-broker account that can publish only to the required invocation queue.

In both configurations, the callback base must be an absolute HTTPS URL. The forwarder appends /workflows/runs/{runId}. The Helm template remains provider-neutral: it only renders the generic service and the values supplied through env, volumes, and mounts.

External worker checklist

• Consume and validate uug.ai/workflow-invocation/v1.
• Deduplicate processing by executionId.
• Treat runId and stage.operation as opaque identities.
• Keep the Hub access token in a secret manager.
• Use a project-bound token with only workflow-runs.update.
• Read the callback URL and result schema from the invocation.
• Return the same operation and exactly one JSON result or block-envelope payload, with a total request size no larger than 1 MiB.
• Treat 202 and an identical-result 200 as success.
• Retry transient 503 responses with backoff.
• Include traceId in logs and traces.

For a stage deployed inside the Hub environment instead, use the direct queue contract in Stages. For the workflow graph and conditional routing model, return to Workflows.
